Remember camera aperture is F8 for white background with 180cm soft box. and F7.1 with gray/blue background without soft box.

Camera settings

Canon T6i
(passport photos)

Manual settings
Shutter speed: 125th/sec
Aperture: F8 for white BG
Aperture: F7.1 for gray/blue BG
ISO: 100
Focus point: center
Upload wired: USB

Canon T7i
(headshot photos)

Manual settings
Shutter speed: 125th/sec
Aperture: varies
ISO: 100
Focus point: center
Upload wireless (EZ share SD card)

Strobe settings

Godox E250

Remote channel: Group F
Left and right strobe:
Flash for softbox background: 1.0 (F8)
Flash for plain background: 1.0 (F7.1)

Godox MS200V
(180 cm soft box)

Remote channel: Group 0 (zero)
Background strobe:
Bright white: 3.5 (F8)
White: 3.0 (F7.1)
Off white: 2.0 (F5.6)
Light gray: 1.0 (F4.5)

See samples below:

Printer settings

HiTi s420

settings…

Liene M100

settings…

HP laserjet pro M15a

settings…

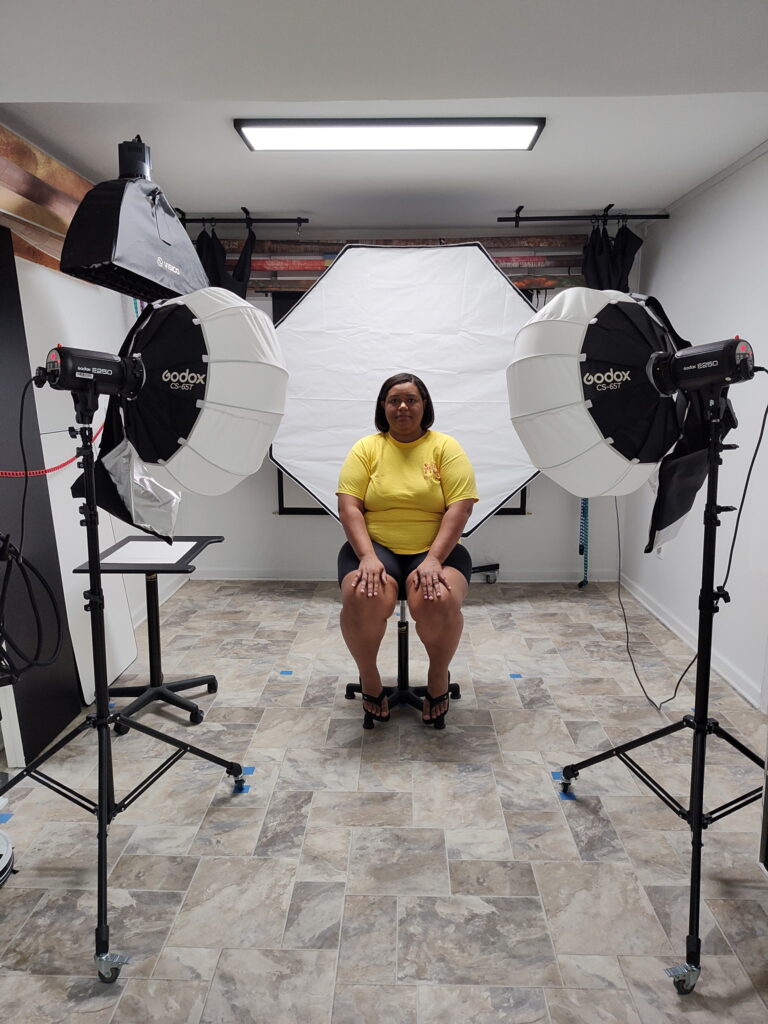

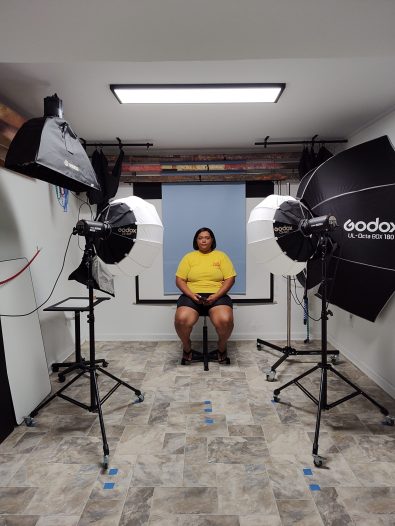

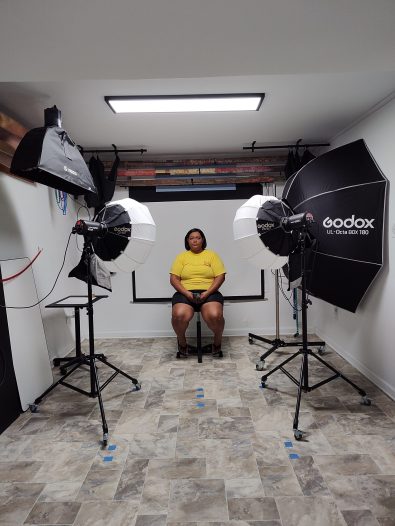

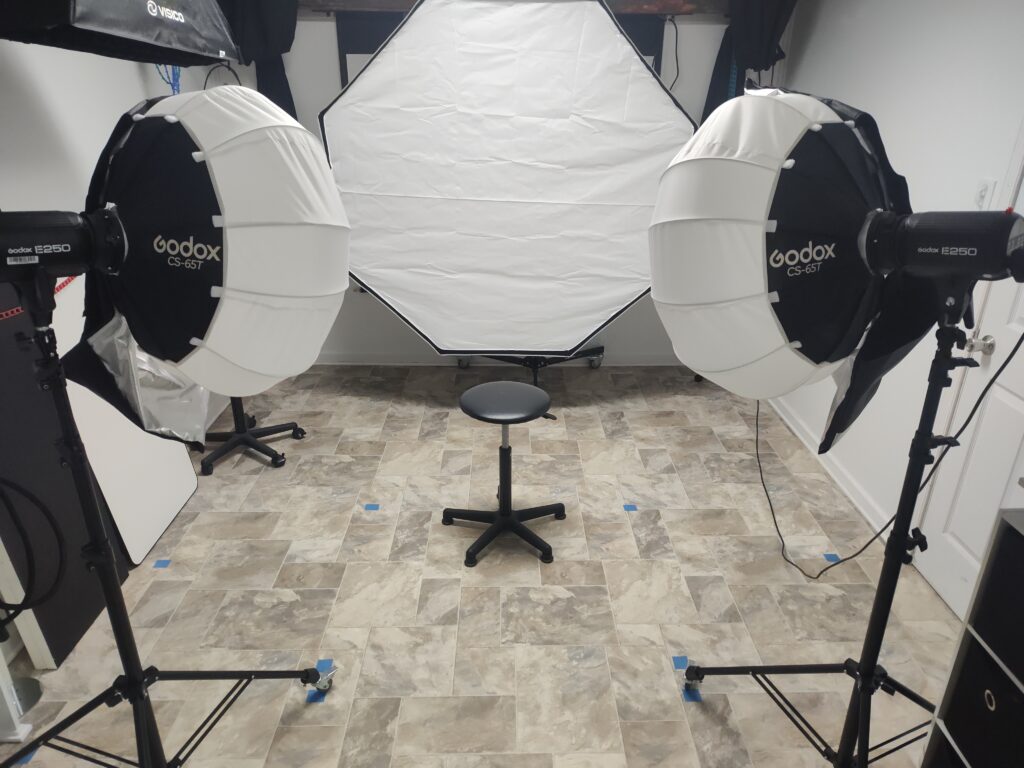

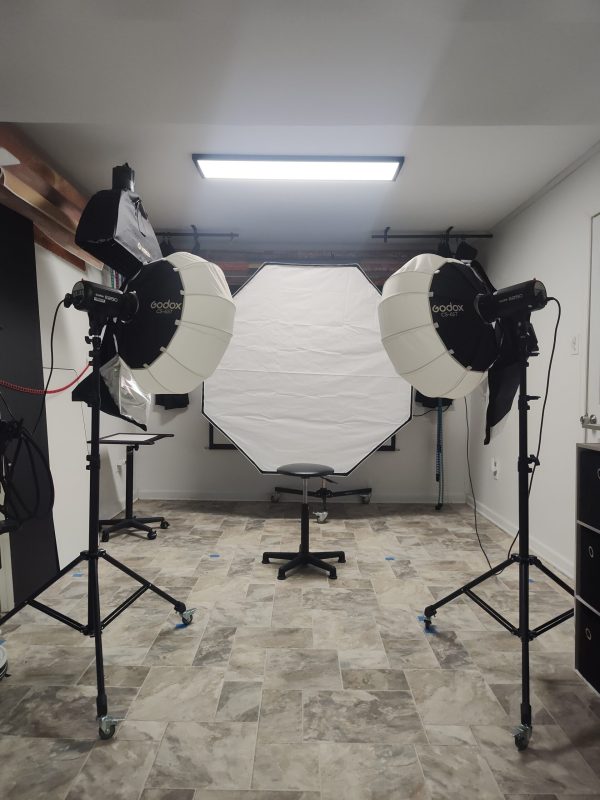

Studio light placement vs subject settings

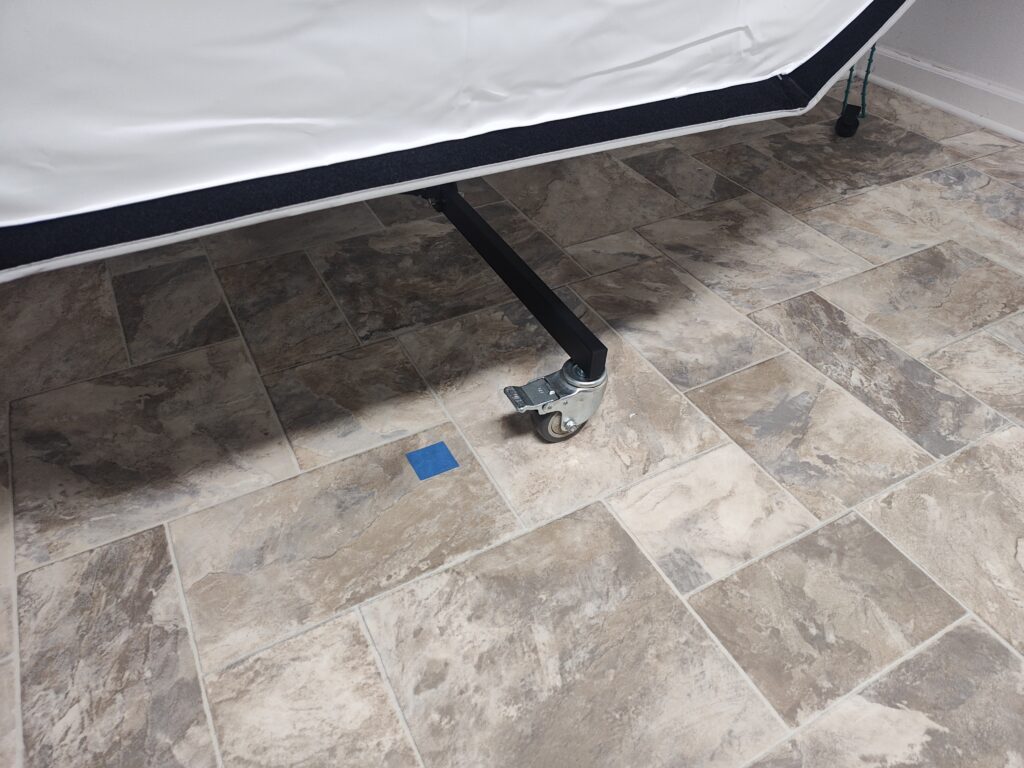

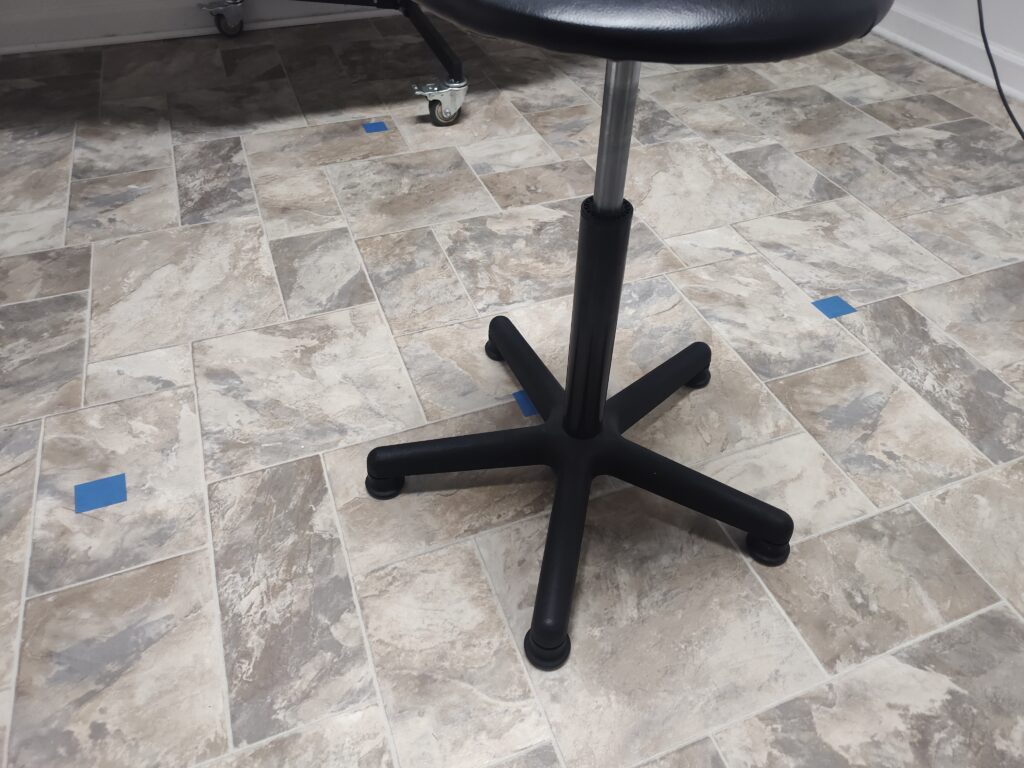

Note the blue squares for light and chair (subject) location.
